EMS3 Unit Kit

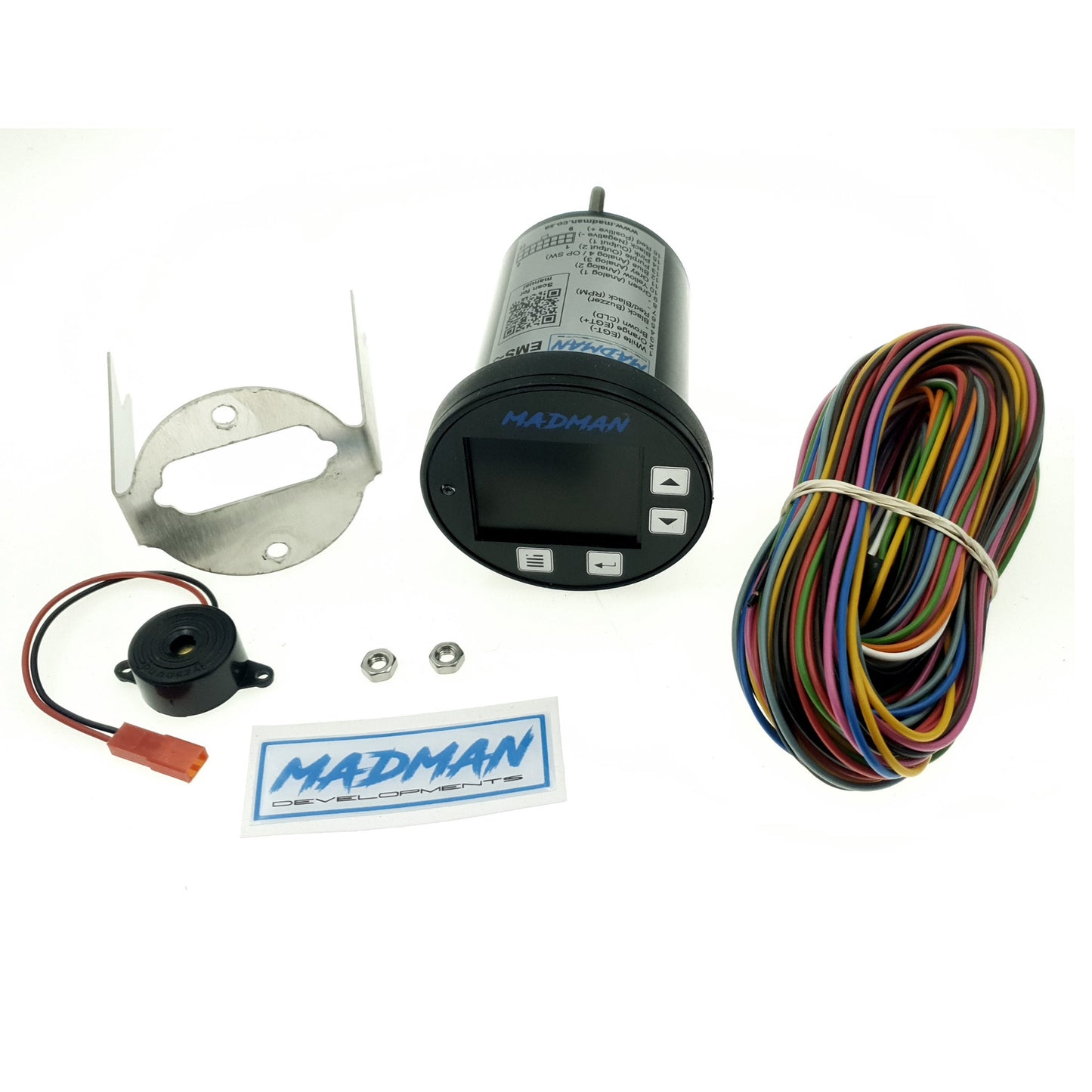

This is the EMS3 unit, mounting bracket and a 3m (10Ft) wiring harness.

Requires additional sensors and adapters purchased separately or as a kit

• High resolution, high brightness colour screen

• 52mm round automotive housing

• Dedicated EGT / Thermocouple input with timelapse display

• Dedicated Coolant Level Detector input

• Dedicated RPM input

• External buzzer output

• Customizable auto dimming sensor for bright or dark environments

• 4 separately customisable analogue inputs can be used as:

  • Pressure Inputs such as Oil, Boost, Fuel, Air etc

  • Temperature Inputs such as Coolant, Oil, Air etc

  • Can also be used as On-Off- inputs

  • User editable input names

• Voltage of supply  battery

• Engine running hours / Service Timer with voltage trigger

• Each function has customizable high and low 'Caution' and 'Alarm' set points

• Each function has preset sensors or can be calibrated to suit almost any sensor

• 2 Outputs, individually selectable from any function can be enabled to switch relay outputs

• CAN Bus output for Datalogger integration (Purchased separately)

• Flash upgradable software
